Product Introduction



Item

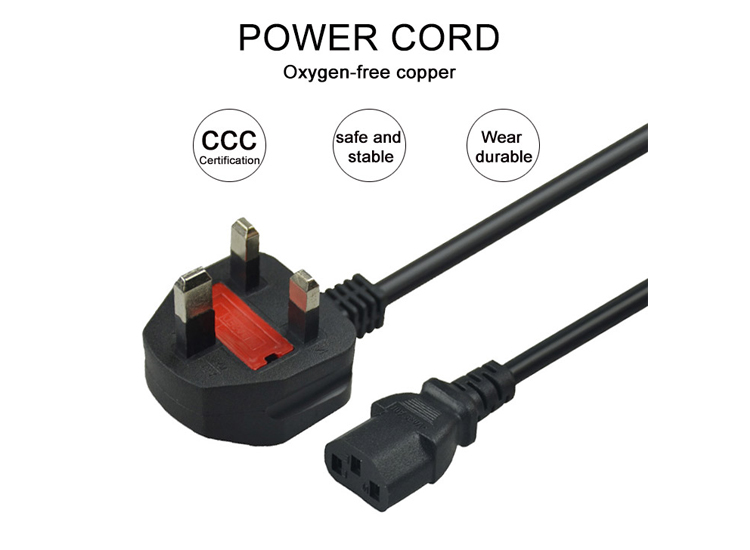

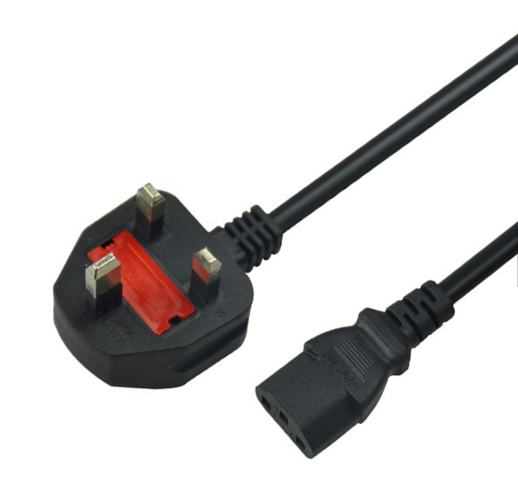

 AC power cord with CE FCC

Applications:

Suitable for general household electrical appliances and office equipment

Environmental requirements

 Working temperatures: 0~40°C, 20-90%RH

 Storage temperatures: -20~80°C, 20-90%RH

Jacket:

  Flame-retardant PVC

Insulation:

 Color coded PVC or SR-PVC

Tests

  UL VW-1 & CSA FTI vertical flame test

  Aging Test (Elogation and Strength test)

  DVW Test: 1500VAC, 1S

  Polarization and Contiunity Test

  Connector Rated Power Test

Features

  10A - 125V/250V;  15A - 125V/250V; 30A - 125V/250V

  50A - 125V/250V





Electrical performance standard

Voltage/frequency:

250V/50Hz

Plug rating:

13A 250V

Conductor Type:

Annealed soft bare copper wire

Number of conductors:

3

Conductor size:

0.75mm², 1mm², 1.5mm²......

Conductor construction:

24/0.2

Cord jacket diameter:

6.35±0.2

Temperature rating:

60℃- 105

RoHS compliance

Yes



Packaging DetailsInner packing: pp bag or as per request
Outer packing: Export cartons
The quantity in one carton : Base on the details of products
Usually we packed it in PE bag with 100 pcs. 100 pcs in one carton box

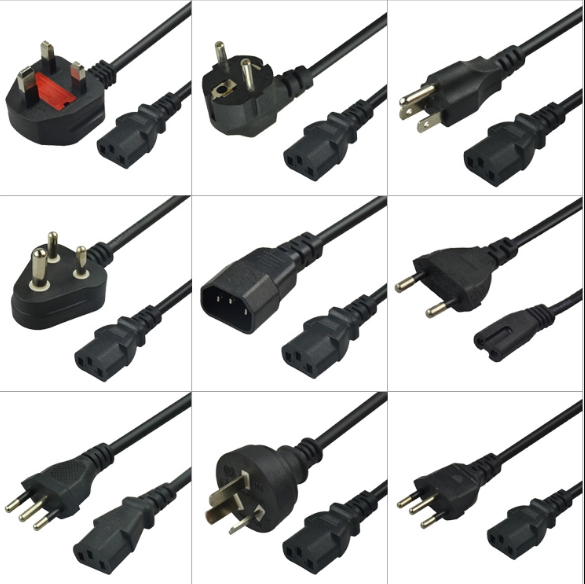

More Models
