Product Introduction

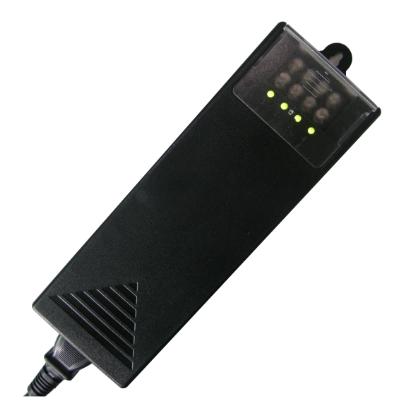

Model: AP1204-5P
DC12V 5A 4 Channel Power supply;;
Wide input range:AC90V-264V;
voltage output:DC11.6~13.2V adjustable;
4 channel with PTC fuse and LED indicator individually.
|
Model Number |
AP1204-5P |
|
Plug Standard |
CN、EU、UK、US、AU、Italy、Brazil、South Africa (Plug cable not included) |
|
Input Voltage Range |
AC90V-264V |
|
Input Frequency Range |
50Hz-60Hz |
|
Output Voltage Range |
DC11.6~13.2V adjustable |
|
Output Current |
5 Ampere |
|
Output Current per channel |
1.5 Ampere Max. |
|
Output Power |
60 Watt Total |
|
Output Ripple&Noise |
≤34MV |
|
Output Efficiency |
≥82% |
|
Environment Operatiing Amb.Temp |
-30℃~45℃ 20%~90%RH |
|
Envionment Storage Temp |
-40℃~85℃ 10%~95%RH |
|
Protection |
PTC fuse for each output individually and LED indicator |
|
Product Dimension |
192*66*39mm |
|
Product Weight |
332g |
|
Carton Size |
47.5X23X37 cm |
|
Warranty |
Two Year |
